It has the function of soft start when closing the battery switch, which can eliminate the starting inrush current, protecting both the machine and the battery.
The PV power can reach up to twice the rated power, and it simultaneously supports full-power grid connection as well as charging and energy storage.
It adopts three - stage charge - discharge conversion, which results in low current ripple and prolongs the service life of the battery.
The Maximum Supports up to 12 parallel machines,Meet users' capacity expansion needs.

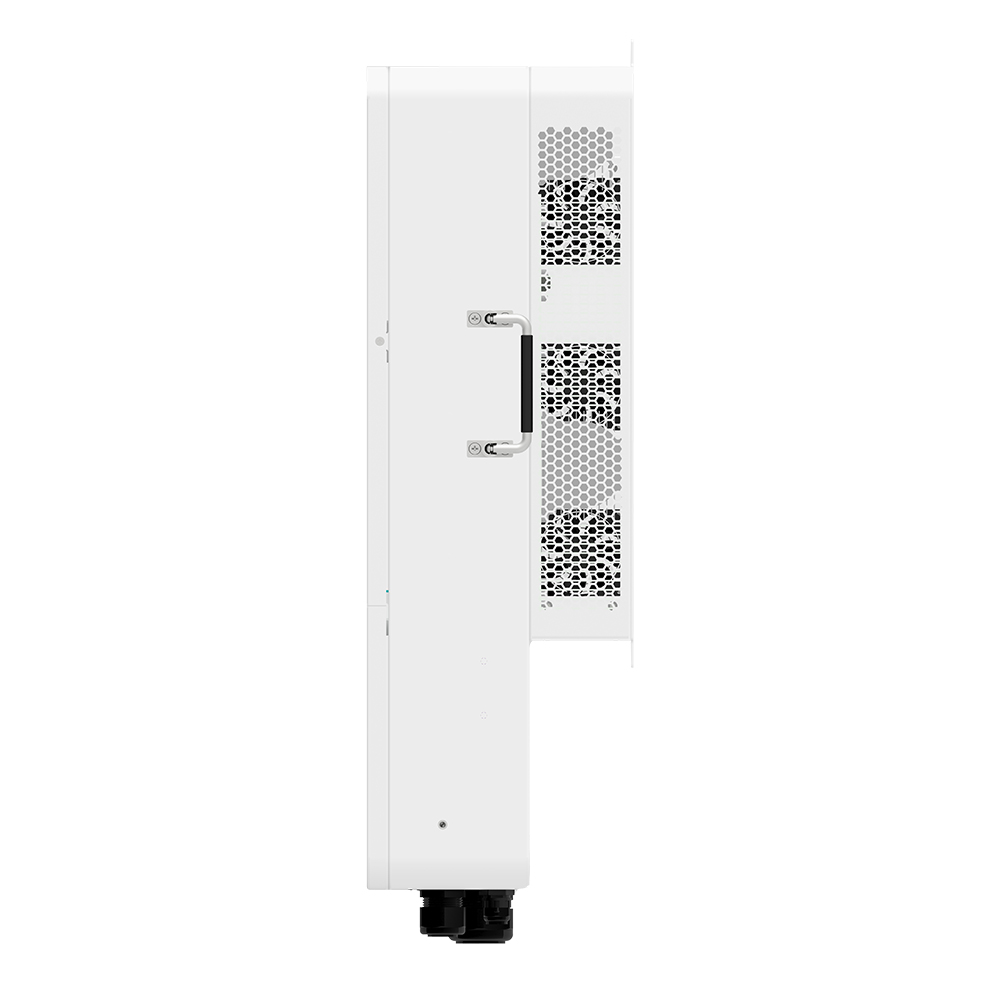

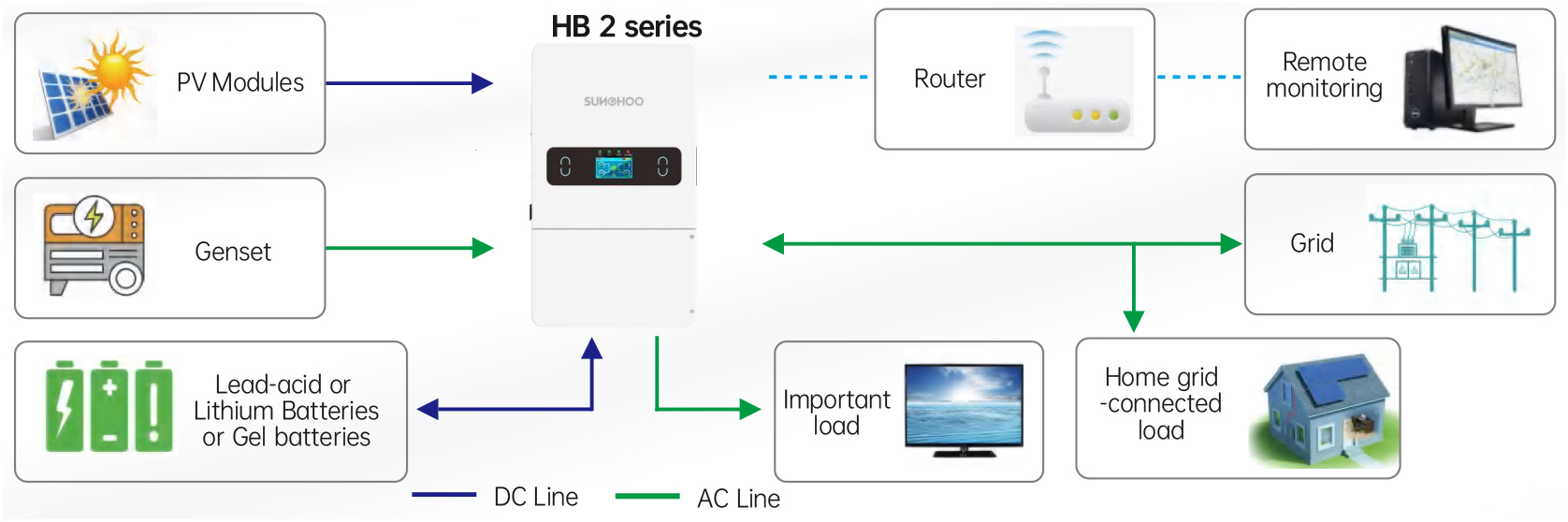

It is equipped with a multi-functional generator interface, enabling intelligent switching and control, thus saving additional investment.
Both the AC input port and the generator interface can be connected to the PV grid-connected inverter for renovating the original PV system.

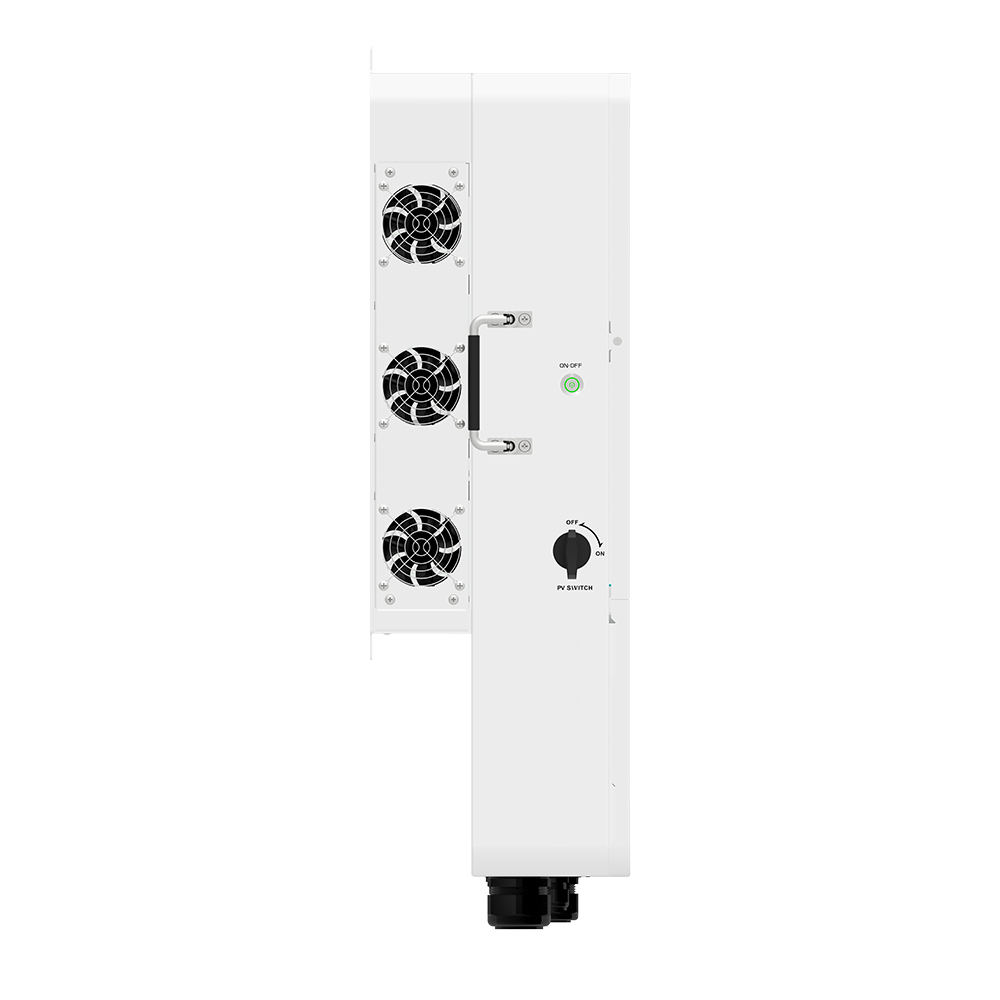

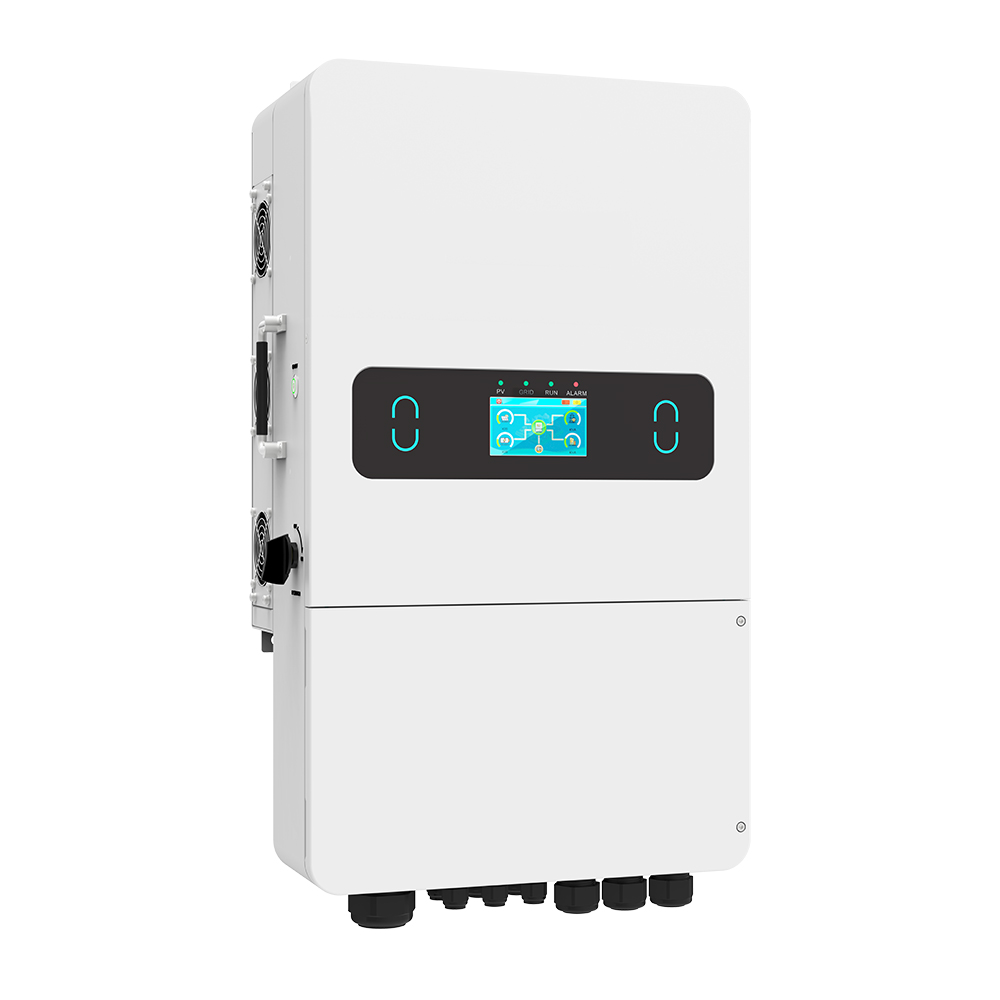

4.3-inch 65K-color HD touch screen, supporting customization of languages worldwide.
Set the charging and discharging time periods according to the time-of-use electricity price.
With an IP66 protection rating, it can be installed outdoors.

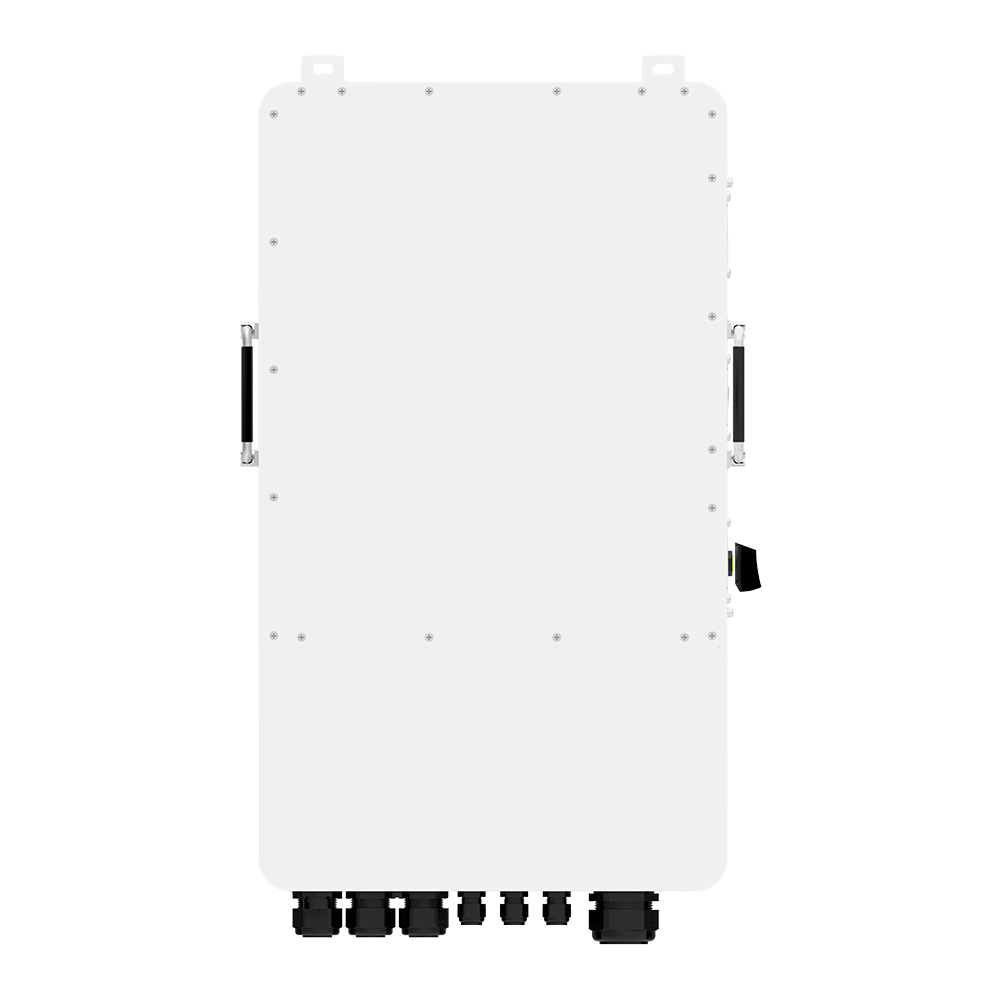

| MODEL |
HB2050 |
HB2060 UH048 |
HB2076 UH048 |
HB2080 |
HB2100 |
HB2114 |
HB2120 |
|---|---|---|---|---|---|---|---|
| PV Input | |||||||
| Max PV Input Power | 10000W | 12000W | 15200W | 16000W | 20000W | 22800W | 24000W |
| Max PV Input Voltage | 550Vdc | ||||||
| PV Input Startup voltage | 90Vdc | ||||||
| MPPT Input Voltage | 370Vdc(90~550V) | ||||||
| MPPT Full Load Voltage Range | 170~550Vdc | 210~550Vdc | 175~550Vdc | 185~550Vdc | 175~550Vdc | 200~550Vdc | 210~550Vdc |
| PV Max Input Current | 15A+15A | 30A+15A | 30A+30A | ||||
| PV Short-circuit Current | 17A+17A | 34A+17A | 34A+34A | ||||
| Number of MPPT / Strings per MPPT | 2/1+1 | 2/2+1 | 2/2+2 | ||||
| AC Output | |||||||
| Rated Output Voltage | 120/240Vac（Split Phase）, 208Vac（2/3phase）, 220/230Vac（single phase） | ||||||
| Grid Voltage Range | Local grid standard mode / Custom mode: 90Vac~280Vac (configurable) | ||||||
| Output Frequency Range | 50/60Hz(±5)，Intelligent adaptive/Settable | ||||||
| Rated Output Current | 20.8A/24A | 25A/28.8A | 31.6A/36.5A | 33.3A/38.5A | 41.7A/48.1A | 47.5A/54.8A | 50A/57.7A |
| Max Grid-connected Current | 22.9A/26.4A | 27.5A/31.7A | 34.8A/40.2A | 36.7A/42.3A | 45.9A/53A | 52.3A/60.3A | 55A/63.5A |
| Rated Grid-connected Power | 5000W | 6000W | 7600W | 8000W | 10000W | 11400W | 12000W |
| Max Grid-connected Viewing Power | 5500VA | 6600VA | 8360VA | 8800VA | 11000VA | 12540VA | 13200VA |
| Max Grid-connected Active Power | 5500W | 6600W | 8360W | 8800W | 11000W | 12540W | 13200W |
| DC Component | ＜0.5% In | ||||||
| Grid Type | Split Phase;2/3 Phase;Single Phase | ||||||
| Output Power Factor | ＞0.99 @ Rated power（Adjustable 0.8 leading~0.8 lagging） | ||||||
| THDi | ＜3% | ||||||
| THDu | ＜2%(Linear load) | ||||||
| Transfer Time | ＜10ms(Typical value) | ||||||
| Off-grid Overload Capability | ＜105%Long-term work , 110%-125% 3min , >120% 10S | ||||||
| Battery Input | |||||||
| Battery Type | Lead-acid, lithium batteries, gel batteries, etc | ||||||
| Charging Mode | 3-section type/Equilibrium/Self-adaption BMS | ||||||
| Battery Voltage | 48Vdc(40~60V) | ||||||
| Max Discharge Current | 120A | 135A | 170A | 170A | 210A | 250A | |
| Max Charging Current | 120A(1~120Adjustable) | 135A(1~135Adjustable) | 170A(1~170Adjustable) | 170A(1~170Adjustable) | 210A(1~210Adjustable) | 250A(1~250Adjustable) | |
| Max Charge/Discharge Power | 5000W | 6000W | 7600W | 8000W | 10000W | 11400W | 12000W |
| Efficiency | |||||||
| Max PV Conversion Efficiency | 97.6% | ||||||
| European Efficiency | 97.0% | ||||||
| MPPT Efficiency | ＞99% | ||||||
| General Parameters | |||||||
| Display | Touch Screen+LED | ||||||
| Communication Mode | Standard ：RS485/CAN/DRM，Optional 4G/WIFI/GPRS | ||||||
| Protection function | Over/Under Volt Prot、Over/Under Freq Prot、AC Out SC/OL Prot、Anti-Island Prot、Batt Chg/Dchg OC Prot、Leakage Curr Prot、Insul Imped Prot、Grd Fault Prot、PV Rev Conn Alarm | ||||||
| Surge Protection | DC Type II / AC Type III | ||||||
| Noise (dB) | ＜45 | ||||||
| Cooling | Intelligent fan | ||||||
| Operating Ambient Temperature | -25°C ~ 60°C(＞45℃ Derating ) | ||||||
| Humidity | 0~100% | ||||||
| Altitude | 4000m (>2000m Derating ) | ||||||
| Electricity Consumption At Night | 15W | ||||||
| Protection Degree | IP66 | ||||||
| Installation Method | Wall-mounted | ||||||
| Dimension. W*D*H(mm) | 835*246*474 | ||||||
| Gross Weight (kg) | 42 | ||||||
| Warranty | 5 years standard/10 years optional | ||||||
| Certifications | |||||||
| Certification | FCC、UL | ||||||
| Certification standard | IEC 62109-2 2011，IEC 62109-1 2010，EN/IEC 50549-10,EC 60529:1989/AMD:2013，GB/T 4208-2017, EN/IEC 61000-6-3:2021, EN 61000-3-12:2011, EN/IEC 61000-3-12:2019, EN/IEC 61000-6-1:2019, RoHS | ||||||
Specifications are subject to change without advance notice.
North American household or light commercial hybrid energy storage system is applicable to newly installed installed or modified photooltaic energy storage system with AC 120V/208V/240V
