With smart BMS system.
High discharge current, strong load impact resistance.

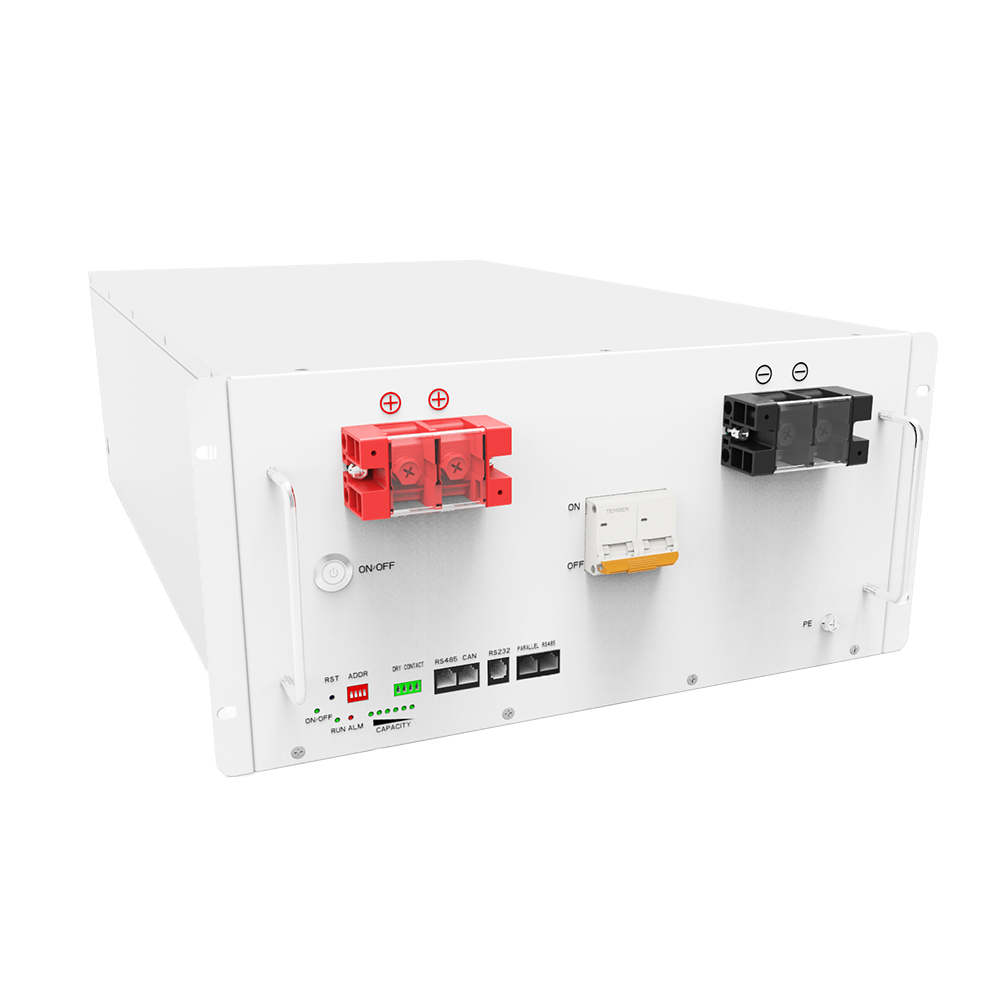

5U rack-mount design with flexible expansion and easy installation.
Grade A Lithium Iron Phosphate Battery, Superior safety and reliability.
Possess safety protection functions such as overcharge, over-discharge, overcurrent, high temperature, and low temperature.
RS485/CAN communication allows for real-time monitoring of battery status and setting of protection parameters.
| MODEL | BM160S048XN |
|---|---|
| Battery | |
| Cell Material | Lithium Iron Battery |
| Cell Rated Capacity | 314Ah |
| Battery Voltage | 51.2V |
| Battery Capacity | 16076Wh |
| Operation Voltge range | 44.8~57.6V |
| Max Continuous Discharge Current | 200A |
| Standard charging current | 157A |
| Max Continuous Charge Current | 200A |
| Battery Standard Cycle Life | 5000 cycles,Depth of Discharge 80% |
| Protection Features | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、Overtemperature protection |
| General Parameters | |
| Display | LED indicator light / LED Display（Optional） |
| Dimension W*D*H(mm) | 483*786*223 |
| Weight(NW Kg) | About 120Kg |
| Chassis installation method | Rack-mounted insert box type，5U |
| Terminal | M10 |
| Cooling | Natural convection |
| Protection Degree | IP20 |
| Communication | CAN/RS485（Optional） |
| Operating Environment | |
| Storage Temperature | -40℃~60℃ |
| Charging Temperature | -10℃~50℃ |
| Discharge Temperature | -20℃~50℃ |
| Humidity | 0%~95% Non-condensation |
| Operating Environment | Indoor |
| Certifications | |
| Certifications | UN38.3，RoHS，CE，MSDS |
The battery cycle life is measured under laboratory conditions at 25°C, while the actual life span is determined by the battery temperature during actual use.
Specifications are subject to change without advance notice.
