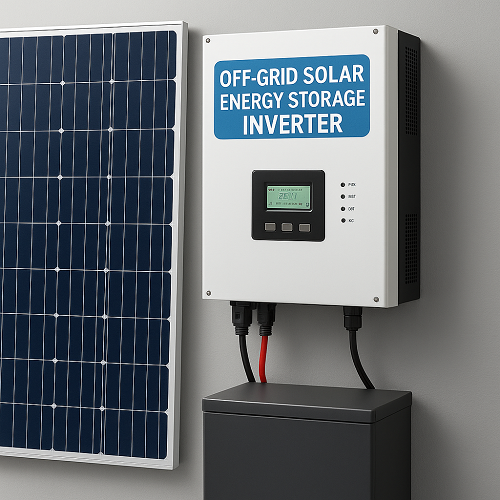

The global shift toward renewable energy has accelerated the adoption of off-grid solar power systems, especially in regions with unreliable grid access or remote locations where utility connections are unavailable. At the heart of every off-grid solar energy system lies a critical component — the Off-Grid Solar Energy Storage Inverter.

This device not only converts the direct current (DC) generated by solar panels into alternating current (AC) usable by household appliances but also manages the storage and distribution of energy between solar arrays, batteries, and loads.

Understanding Off-Grid Solar Systems

An off-grid solar power system operates independently from the public electricity grid.

Its primary components include:

• Photovoltaic (PV) Array: Converts sunlight into DC electricity.
• Charge Controller (or MPPT Controller): Regulates voltage and current from the PV array to safely charge the battery bank.
• Battery Storage System: Stores excess energy for use during periods without sunlight.
• Off-Grid Inverter: Converts DC power from the battery or PV system into AC power.
• Load: Electrical devices or systems powered by the inverter.

The off-grid inverter serves as the central control and power conversion hub, ensuring stable, reliable, and efficient operation.

Functional Roles of the Off-Grid Solar Inverter

An off-grid solar inverter performs multiple critical functions:

• DC to AC Conversion: Converts low-voltage DC (typically 12V–600V) from batteries or solar arrays to 120V/230V AC.
• Battery Management: Controls the charging and discharging of the energy storage system.
• Load Regulation: Provides clean and stable AC output with minimal harmonic distortion.
• System Monitoring & Protection: Incorporates protections such as over-voltage, under-voltage, overload, short-circuit, and temperature control.
• Energy Flow Coordination: Balances energy between solar input, battery storage, and load demand through intelligent energy management algorithms.

Inverter Topologies and Architectures

Basic Inverter Topologies

Square Wave Inverter:

• Simplest design, producing a square AC waveform. Suitable only for resistive loads.
• Advantages: Low cost.
• Disadvantages: High harmonic distortion, poor performance with inductive loads.

Modified Sine Wave Inverter:

• Produces stepped approximation of a sine wave.
• Advantages: Compatible with most appliances.
• Disadvantages: Moderate efficiency, potential noise and heat in sensitive electronics.

Pure Sine Wave Inverter:

• Generates a waveform nearly identical to utility power.
• Advantages: High compatibility and efficiency, essential for modern electronics.
• Disadvantages: Higher cost and complexity.

Modern Inverter Topologies

• Transformer-Based Inverters: Offer galvanic isolation, higher surge capacity, and safety.
• Transformerless Inverters: Lightweight, more efficient, commonly used in high-voltage DC systems.
• Multilevel Inverters (MLI): Provide high-quality output with reduced harmonic distortion using multiple DC levels.

Topologies include:

• Neutral Point Clamped (NPC)
• Flying Capacitor
• Cascaded H-Bridge

Core Components and Their Technical Roles

Working Principle

• DC Input: Solar panels or batteries supply DC power to the inverter.
• DC Link Formation: The DC voltage is stabilized using capacitors.
• PWM Generation: A control circuit generates Pulse Width Modulated (PWM) signals that drive semiconductor switches.
• AC Synthesis: The switching devices alternate current direction, producing an AC waveform.
• Filtering: LC filters remove high-frequency components to create a smooth sine wave.
• Output Distribution: The AC power is supplied to loads or secondary circuits.

The PWM technique—typically using Sinusoidal Pulse Width Modulation (SPWM) or Space Vector Modulation (SVM)—is critical for waveform quality and inverter efficiency.

Battery Integration and Energy Storage Management

Modern off-grid inverters are designed to support various battery chemistries:

• Lead-Acid (Flooded, AGM, Gel)
• Lithium-Ion (LFP, NMC)
• Nickel-Based Batteries (NiCd, NiMH)

Battery Management System (BMS) Integration

A robust BMS ensures optimal charging, cell balancing, and protection from overcharge or deep discharge. The inverter communicates with the BMS via protocols such as CAN, RS485, or Modbus RTU.

Charging Algorithms

• Three-Stage Charging: Bulk → Absorption → Float
• Equalization Charging: Periodic balancing for lead-acid batteries.
• Smart Charging: Adaptive algorithms adjust charging parameters based on temperature and state of charge (SOC).

Maximum Power Point Tracking (MPPT)

MPPT is a key feature of advanced off-grid inverters that maximizes solar array efficiency. It continuously adjusts the PV operating voltage to extract the maximum possible power under varying sunlight and temperature conditions.

Common MPPT techniques include:

• Perturb & Observe (P&O)
• Incremental Conductance (INC)
• Constant Voltage Tracking
• Fuzzy Logic and Neural Network Methods

Modern systems often use dual MPPT inputs to handle multiple PV strings independently for greater flexibility.

Efficiency and Performance Factors

• Conversion Efficiency: 90%–98% (depends on topology and load).
• No-Load Power Consumption: <2% of rated output.
• THD (Total Harmonic Distortion): <3% for pure sine wave output.
• Surge Power Handling: Typically 2× rated capacity for a few seconds.
• Cooling Efficiency: Forced air or liquid cooling maintains operational temperature.

System Design and Sizing Considerations

When designing an off-grid solar system, inverter sizing must account for:

• Peak Load Demand (Watts): The inverter should handle maximum instantaneous load.
• Continuous Load (W): Determines sustained power output requirements.
• Battery Voltage (V): Common standards: 12V, 24V, 48V, or higher for large systems.
• PV Input Range (V): Must match MPPT range for efficient tracking.
• Surge Current (A): For inductive loads such as pumps or motors.
• Temperature Derating: Power output decreases at higher ambient temperatures.

Proper cable sizing, earthing, and surge protection are critical for safety and efficiency.

Communication, Monitoring, and Smart Features

Modern off-grid solar inverters are equipped with digital control and connectivity features:

• Display & User Interface: LCD/LED panels showing voltage, current, SOC, and fault codes.
• Remote Monitoring: Wi-Fi, Bluetooth, RS485, or GSM modules for data logging.
• Cloud Integration: Enables AI-based predictive maintenance and performance analytics.
• Firmware Upgradability: Remote updates ensure compatibility with new technologies.

Reliability and Safety

Key protection features include:

• Overload, short-circuit, and over-temperature protection.
• Reverse polarity and ground fault detection.
• Isolation monitoring for high-voltage systems.

Compliance with international standards such as:

• IEC 62109-1/2 (Safety)
• IEC 61683 (Efficiency testing)
• IEEE 1547 (Interconnection)

Future Trends and Innovations

The future of off-grid solar inverters is being shaped by technological convergence:

• Hybrid Inverters: Combine on-grid and off-grid functionalities with seamless transfer.
• AI-Based Energy Management: Predicts load and weather patterns for optimal dispatch.
• SiC and GaN Semiconductors: Improve efficiency and reduce switching losses.
• Integrated DC Microgrids: Enable direct DC coupling for higher overall system efficiency.
• Vehicle-to-Home (V2H) Integration: EV batteries serve as temporary energy storage.

The Off-Grid Solar Energy Storage Inverter is more than a simple power converter—it is the intelligent core of autonomous renewable energy systems. It harmonizes generation, storage, and consumption with high precision and safety.
